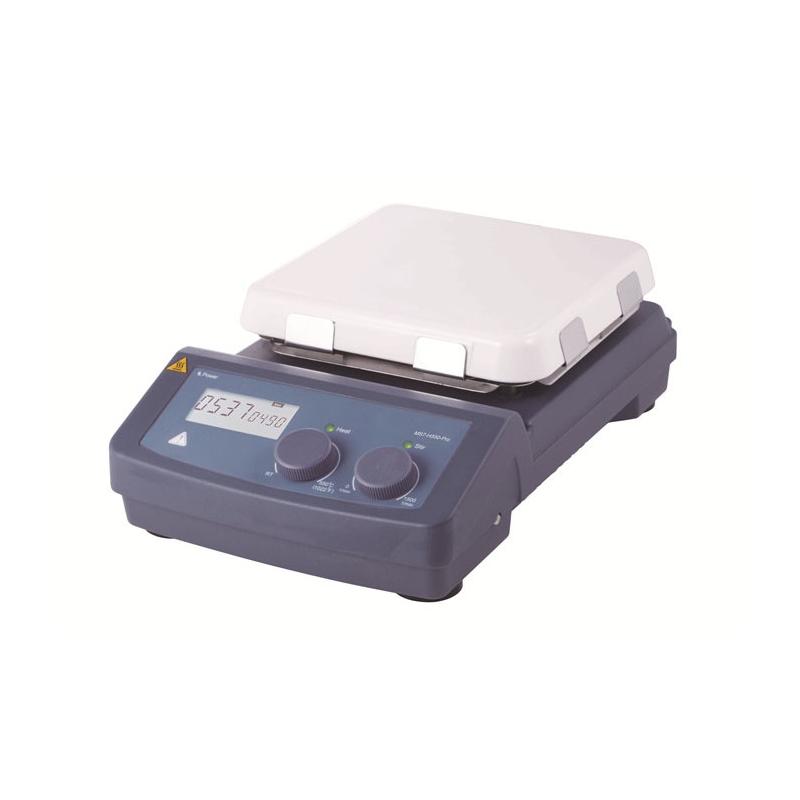

Hotplate Magnetic Stirrer – 7×7-550℃

4.9 (Global Reviews)

Intuitive LCD display: Monitors speed and temperature for effortless operation and data recording.
Precise PID controller: Ensures safe and precise heating (up to 550°C) with overheating protection.
Chemically resistant glass ceramic worktop: Withstands corrosion from various chemicals and provides efficient heat transfer.
High-temperature heating plate: Meets the demands of diverse experiments.

Advantages for the user	Features
Less competition	Very few manufacturers only provide these products
Can be used in chemical synthesis field	Glass ceramic work plate provides high chemical resistance
Maintenance free motor	Brushless DC motor
LCD display	LCD display shows speed and temperature
“Hot” warning ensures safe of operator	The “HOT” warning will flash when the plate temperature is above 50℃ even the hotplate is turned off
Real-time detection of sample temperature	Connect PT1000 temperature sensor to detect sample temperature
Remote Operation	Provide pc control and data transmission
Wide applicability	A wide variety of accessories are available

Precise LCD display: Monitors speed and temperature for easy control.
Safe Heating: Built-in PID controller ensures precise heating (up to 550°C) with overheat protection.
Efficient Heat Transfer: Glass ceramic worktop offers excellent chemical resistance and efficient heat transfer.
Advanced Features:
- External temperature control (±0.2°C with PT1000 sensor)
- Digital speed control (max 1500rpm) with brushless DC motor for strong stirring
- Dual knobs for intuitive speed & temperature adjustment
- “HOT” warning for residual heat (>50°C)
- Optional PC control and data transmission

Dimension of work plate [W x D]	184x184mm (7 inch)
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity, [H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	100-1500rpm, resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-550°C, increment 1°C
Control accuracy of work plate	±1°C(<100°C) ±1%(>100°C)
Over temperature protection	580°C
Temperature display accuracy	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
“Hot” warning	50°C
Data connector	RS232
Protection class	IP21
Dimension [W x D x H]	215x360x112mm
Weight	5.3kg
Permissible ambient temperature and humidity	5-40°C, 80%
